MMIO_Starting_Physical_Address and PCIe
Posted: Tue Aug 10, 2021 12:09 pm
by Rukog
Where to get this address ?
https://wiki.osdev.org/PCI_Express
To access a specific register within a device's PCI configuration space, you have to use the device's PCI Segment Group and bus to determine which memory mapped PCI configuration space area to use, and obtain the starting physical address and starting bus number for that memory mapped area. Once you have the correct starting physical address and starting bus number for that memory mapped area you would use the following formula to determine where the (4096-byte) area for a function's PCI configuration space is: Physical_Address = MMIO_Starting_Physical_Address + ( (Bus - MMIO_Starting_Bus) << 20 | Device << 15 | Function << 12 ).
Re: MMIO_Starting_Physical_Address
Posted: Tue Aug 10, 2021 12:17 pm
by Klakap
You do not have to use physical address, you can simply use ports 0xCF8 and 0xCFC. Everything is on
PCI, driver for PCI will work on PCI express too.
Re: MMIO_Starting_Physical_Address
Posted: Tue Aug 10, 2021 12:18 pm
by Rukog
Klakap wrote:You do not have to use physical address, you can simply use ports 0xCF8 and 0xCFC. Everything is on
PCI, driver for PCI will work on PCI express too.
No thanks, I do not wish to use in/out, I prefer the MMIO way.
Update:
I found that in

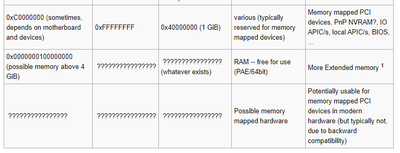

https://wiki.osdev.org/Memory_Map_(x86)
I like the
(sometimes, depends on motherboard and devices)
????????????????
lmao
Re: MMIO_Starting_Physical_Address
Posted: Tue Aug 10, 2021 12:45 pm
by Klakap
If you want to use MMIO in PCI, you have to find ACPI table MCFG. So it means that you have to find
RSDP, where is pointer to
RSDT. RSDT contains pointers to all ACPI tables. You have to search them and figure out of MCFG is here. If yes, you can read MMIO_Starting_Physical_Address from it. But it is not sure that you will find this table on every computer. I think that I/O way is much much easier than this.
Re: MMIO_Starting_Physical_Address
Posted: Tue Aug 10, 2021 12:51 pm
by nexos
Klakap wrote:I think that I/O way is much much easier than this.
True, but PCIe (which is what uses MMIO) became the industry standard in 2005. I have seen many motherboard that have no PCI slots, although I'm not sure if they emulate PCI internally. For this reason, I would prefer the MCFG way. It may be trickier, but you have support of the current industry standard.
Re: MMIO_Starting_Physical_Address
Posted: Fri Aug 13, 2021 12:14 pm
by Rukog
Klakap wrote:If you want to use MMIO in PCI, you have to find ACPI table MCFG. So it means that you have to find
RSDP, where is pointer to
RSDT. RSDT contains pointers to all ACPI tables. You have to search them and figure out of MCFG is here. If yes, you can read MMIO_Starting_Physical_Address from it. But it is not sure that you will find this table on every computer. I think that I/O way is much much easier than this.
I think ive found it, so the RSDT address is 0x5150484B ?
Re: MMIO_Starting_Physical_Address
Posted: Fri Aug 13, 2021 12:52 pm
by Octocontrabass
If the checksum is correct, that's the RSDP, but you've got the wrong number for the RSDT address.
Take another look at the RSDP structure.
Also, you should use the XSDT instead of the RSDT if it's available.
Re: MMIO_Starting_Physical_Address
Posted: Fri Aug 13, 2021 3:17 pm
by Rukog
Octocontrabass wrote:If the checksum is correct, that's the RSDP, but you've got the wrong number for the RSDT address.
Take another look at the RSDP structure.
Also, you should use the XSDT instead of the RSDT if it's available.
Feelsbad, on Qemu impossible to retrieve the RSDP table descriptor, the checksum is bad and only
RSD is showing as signature, it shows its limit real quick
Also the checksum was a success on real machine and the XSDT address is 0x873BE0A0.
Does it sounds like a correct address ?
Re: MMIO_Starting_Physical_Address
Posted: Fri Aug 13, 2021 3:30 pm
by Octocontrabass
Rukog wrote:Feelsbad, on Qemu impossible to retrieve the RSDP table descriptor, the checksum is bad and only
RSD is showing as signature, it shows its limit real quick
If the signature doesn't match, it's not the RSDP. Did you find anything else that looks like the RSDP?
Rukog wrote:Also the checksum was a success on real machine and the XSDT address is 0x873BE0A0.
Does it sounds like a correct address ?
Yes.
Re: MMIO_Starting_Physical_Address
Posted: Fri Aug 13, 2021 4:01 pm
by Rukog
Octocontrabass wrote:Rukog wrote:Feelsbad, on Qemu impossible to retrieve the RSDP table descriptor, the checksum is bad and only
RSD is showing as signature, it shows its limit real quick
If the signature doesn't match, it's not the RSDP. Did you find anything else that looks like the RSDP?
Yes, ive two match after multiple scan pass
Re: MMIO_Starting_Physical_Address
Posted: Fri Aug 13, 2021 4:12 pm
by Octocontrabass
The first picture looks like the correct RSDP, but why is it at 0x105B?
It should be either within the first 1KB of the EBDA or between 0xE0000 and 0xFFFFF. (And it will always be aligned to a 16-byte boundary.)
Re: MMIO_Starting_Physical_Address
Posted: Fri Aug 13, 2021 4:32 pm
by Rukog
Yes because I am dumping the RSDPDesc struct where I store the RSDP found.
Else I am just searching for "RSD " w/o "PTR ", on my real machine it redirects me directly to a good RSDP but not Qemu that redirect me to several RSDP.
Re: MMIO_Starting_Physical_Address
Posted: Fri Aug 13, 2021 4:43 pm
by Octocontrabass
Yes, that's normal. You're supposed to ignore any invalid RSDP you find and keep searching until you find a valid one.
Re: MMIO_Starting_Physical_Address
Posted: Fri Aug 13, 2021 5:01 pm
by Korona
Qemu definitely presents a valid RSDP if you run a machine model that has ACPI support.
Re: MMIO_Starting_Physical_Address
Posted: Sat Aug 14, 2021 2:13 am
by Klakap
As Occontrabass noted, you have to search RSDP in memory from 0xE0000 to 0xFFFFF as first. Only if you can not found RSDP in this memory, you can move to Bios EBDA area. When you found signature ‘RSD PTR ‘ you have to do checksum. If you do not do checksum, once in a while you will found computer with false RSDPs, e.g. Bochs. Checksum is made by adding all 20 bytes of RSDP/36 bytes of XSDP and checking if first byte of result is zero. If yes, you found valid RSDP. From my driver I can provide information that in Bochs is RSDP on address 0xFBB30, in QEMU on 0xF0980, and in Virtualbox on 0xE0000.
