Pedigree early USB test request

Post by eddyb »

After lots of months of code and trial&error, I managed to get my UHCI driver to work on realHW.

I've prepared an ISO image with the modified pedigree and uploaded it at http://thesalesgenerator.com/playground ... digree.iso .
It contains drivers for: EHCI(not tested on realHW), UHCI, USB Mass Storage(read only and may not work on realHW), USB HID, USB Hub and FT8U232AM.

If you want to test only UHCI, see http://forum.osdev.org/viewtopic.php?f= ... 95#p177622 .

The log is both on screen and on serial. Some modules are disabled, so it should enter debugger(press any key at the blue-on-black screen) soon after usb has finished initializing devices. In the debugger, "log<enter>" will let you browse the log.
To put it simple: if it works, there should be at least one "(NN) USB: Device: VENDOR_STRING PRODUCT_STRING, class x:y:z" line in the log.
Each transaction has debugging output, so if anything went wrong, there should be the "STOP" lines will end with a negative value.
Full logs would be nice :) .

Thank you,
eddyb.
Last edited by eddyb on Sun Jul 04, 2010 2:56 am, edited 2 times in total.
Top
eddyb
Member
Member
Posts: 248
Joined: Fri Aug 01, 2008 7:52 am

Re: Pedigree early USB test request

Post by eddyb »

Update: I've made another ISO image with EHCI driver disabled and full-screen log. Here you can download it: http://thesalesgenerator.com/playground ... digree.iso .
Top
eddyb
Member
Member
Posts: 248
Joined: Fri Aug 01, 2008 7:52 am

Re: Pedigree early USB test request

Post by eddyb »

Update: just wrote an OHCI driver, the new ISO image it at http://thesalesgenerator.com/playground ... digree.iso .
Top
User avatar
JackScott
Member
Member
Posts: 1036
Joined: Thu Dec 21, 2006 3:03 am
Location: Hobart, Australia
Mastodon: https://aus.social/@jackscottau
Matrix: @JackScottAU:matrix.org
GitHub: https://github.com/JackScottAU
Contact:
Contact JackScott

Re: Pedigree early USB test request

Post by JackScott »

Hi,

I've tested the latest CD image you posted here on my workstation. The motherboard is a Gigabyte GA-790FXTA-UD5, using the 790FX/SB750 chipset. There was a Logitech webcam and a Microsoft wireless keyboard/mouse receiver connected at the time of testing. Let me know if you want any other information.

Code: Select all

(NN) KERNELELF: Executing module usb
(NN) KERNELELF: Executing module usb-hcd
(WW) USB: xHCI found, not implemented yet!
(NN) USB: OHCI found
(NN) address=0xc0281e08, m_Io=0xc0932e88
(NN) USB: OHCI: Reseted
(NN) USB: OHCI found
(NN) address=0xc0281e88, m_Io=0xc0932b48
(NN) USB: OHCI: Reseted
(NN) USB: OHCI found
(NN) address=0xc0281fc8, m_Io=0xc0932cc8
(NN) USB: OHCI: Reseted
(NN) USB: OHCI: Port 0 is connected
(NN) START 0:0 SETUP 0
Regards, Jack.
Top
eddyb
Member
Member
Posts: 248
Joined: Fri Aug 01, 2008 7:52 am

Re: Pedigree early USB test request

Post by eddyb »

JackScott wrote:Hi,

I've tested the latest CD image you posted here on my workstation. The motherboard is a Gigabyte GA-790FXTA-UD5, using the 790FX/SB750 chipset. There was a Logitech webcam and a Microsoft wireless keyboard/mouse receiver connected at the time of testing. Let me know if you want any other information.

Code: Select all

(NN) KERNELELF: Executing module usb
(NN) KERNELELF: Executing module usb-hcd
(WW) USB: xHCI found, not implemented yet!
(NN) USB: OHCI found
(NN) address=0xc0281e08, m_Io=0xc0932e88
(NN) USB: OHCI: Reseted
(NN) USB: OHCI found
(NN) address=0xc0281e88, m_Io=0xc0932b48
(NN) USB: OHCI: Reseted
(NN) USB: OHCI found
(NN) address=0xc0281fc8, m_Io=0xc0932cc8
(NN) USB: OHCI: Reseted
(NN) USB: OHCI: Port 0 is connected
(NN) START 0:0 SETUP 0
Regards, Jack.
Thanks, it seems it fails to get an IRQ from the OHCI.
Well, I don't suppose anyone else wants to give it a try, so I won't post updates on the images anymore.
Top
fronty
Member
Member
Posts: 188
Joined: Mon Jan 14, 2008 5:53 am
Location: Helsinki

Re: Pedigree early USB test request

Post by fronty »

On my Acer Aspire 7530 (sorry, couldn't find motherboard model), it prints this and sits there without any response to anything. Don't know what blue-on-black screen you're talking about.

Code: Select all

(NN) KERNELELF: Executing module usb
(NN) KERNELELF: Executing module usb-hcd
(NN) USB: OHCI found
(NN) address=0xc0281c48, m_Io=0xc0940748
(NN) USB: OHCI: Reseted
(NN) USB: OHCI found
(NN) address=0xc0281d48, m_Io=0xc0940408
(NN) USB: OHCI: Reseted
(NN) USB: OHCI: Port 0 is connected
(NN) START 0:0 SETUP 8
Top
eddyb
Member
Member
Posts: 248
Joined: Fri Aug 01, 2008 7:52 am

Re: Pedigree early USB test request

Post by eddyb »

fronty wrote:On my Acer Aspire 7530 (sorry, couldn't find motherboard model), it prints this and sits there without any response to anything. Don't know what blue-on-black screen you're talking about.

Code: Select all

(NN) KERNELELF: Executing module usb
(NN) KERNELELF: Executing module usb-hcd
(NN) USB: OHCI found
(NN) address=0xc0281c48, m_Io=0xc0940748
(NN) USB: OHCI: Reseted
(NN) USB: OHCI found
(NN) address=0xc0281d48, m_Io=0xc0940408
(NN) USB: OHCI: Reseted
(NN) USB: OHCI: Port 0 is connected
(NN) START 0:0 SETUP 8
Same problem: no IRQ. Also, the blue-on-black screen is the debugger screen and it's disabled in the latest images.
Anyway, if you or anyone else wants to try again, I fixed some of the problems and made a new image ( http://thesalesgenerator.com/playground ... digree.iso ). I've also updated the first post with the latest link.
Top
fronty
Member
Member
Posts: 188
Joined: Mon Jan 14, 2008 5:53 am
Location: Helsinki

Re: Pedigree early USB test request

Post by fronty »

New output.

Code: Select all

(NN) KERNELELF: Executing module usb
(NN) KERNELELF: Executing module usb-hcd
(NN) USB: EHCI found
(NN) address=0xc0281d88, m_Io=0xc05d0608
(NN) USB: EHCI: Reseted
(NN) USB: EHCI: Port 0 got 0x1000
(NN) USB: EHCI: Port 1 got 0x1000
(NN) USB: EHCI: Port 2 got 0x1005
(NN) USB: EHCI: Port 2 is connected
(NN) START 0:0 SETUP 8
(NN) IRQ 0x1010
On both times I've had Speedlink mouse and Casio FX-9860G connected.
Top
geppyfx
Member
Member
Posts: 87
Joined: Tue Apr 28, 2009 4:58 pm

Re: Pedigree early USB test request

Post by geppyfx »

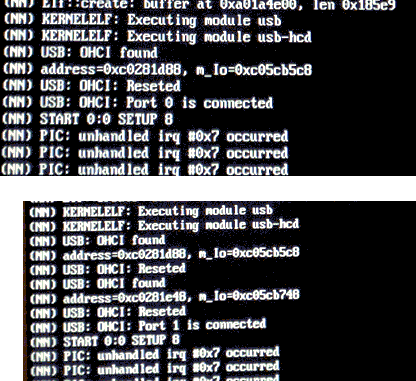

Just want to say something that could be related to the unhanded interrupt. When I run my own code(an OS) I get some unknown interrupt when enabling them in protected mode on this particular machine. I get #GP because PIC masked and device related IDT entries are not set. I get GP only once.
