Problems with personal font map

[Karlosoft]

Hi! I'm working in 640x480 24bit graphic mode, and i need to add a character function. This is the font map (8x16) taken from an other source.
(It's the attached file)

Well when i compile the kernel the bin contains only the characters up to 26. Why the other 230 chars aren't "saved"?

[neon]

...This makes me happy of using bitmap resources.

Im not to sure why it would only take the first 26 characters though. What happens if you add another label after the 26th character?

[Blue]

After some playing around with the source, I found out that the error happens on this line (26th character):

Code: Select all

DB    000H            ; 00000000  °°°°°°°°   |          |"→"|        |

If you remove the arrow from the comment, it compiles to 4 KiB which fixes it.
On the other hand I have no idea of why it happens since the arrow actually is placed in a comment.

[neon]

Hm, that is weird. Perhaps its an assembler bug?

[Blue]

That is my thought too. It is an unicode character, so my wild guess would be that the assembler has problems handling unicode. The strange thing about that the character is placed in a comment

[~]

Yes, I think that NASM has problems with those characters. Maybe you should edit the file in real text mode, not using something like Notepad or avoid using those characters. Anyway, if the 1's and 0's of the bitmap are seen with attention and with a monospaced font like Courier, it should be easy to distinguish the character.

[Karlosoft]

In fact the 26th character wasn't shown all, but only up to the arrow. Now it work
Wow a bug in nasm... well thanks for the help

[jal]

That is my thought too. It is an unicode character, so my wild guess would be that the assembler has problems handling unicode. The strange thing about that the character is placed in a comment :?

Err... guys... That is character 26, you know, ^Z? The "end of file" marker?


JAL

[~]

It also has failed with this character ° that resembles degrees.

[Blue]

Err... guys... That is character 26, you know, ^Z? The "end of file" marker?

That makes sense today after sleeping Thanks for clarifying

[Karlosoft]

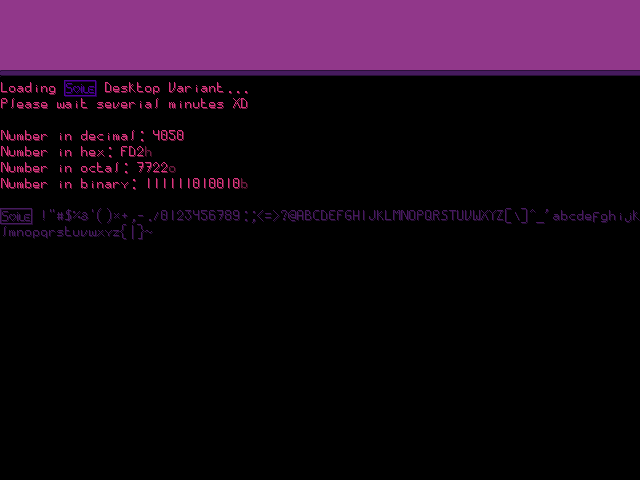

This is my new font

[Karlosoft]

Why? what characters are difficult to read?

[Karlosoft]

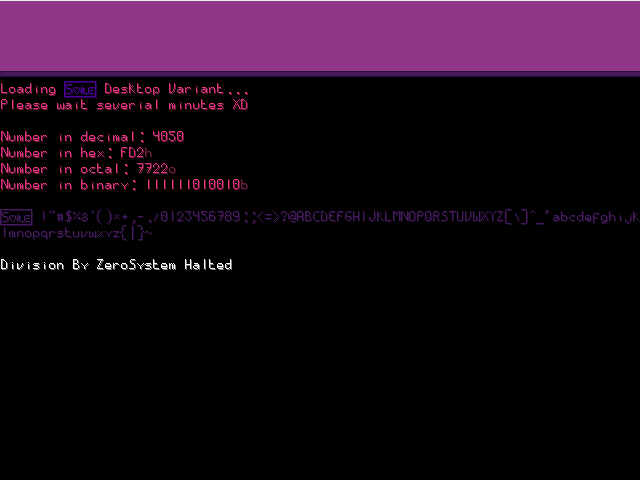

Is this better?

[Combuster]

Adding to that, the L character is now identical to the 1 character

[Firestryke31]

A quick tip: Choose some brighter colors. The first pink part is good, but the purple font demo is too hard for me to see. I'd suggest something closer to #7010F0. Also, the dark pink number suffixes are a bit hard to read.

The X and Y characters are a bit top-heavy, as well as the P and R. Move the intersections down just a bit. You also might try a little more padding between characters (i.e. keep the cells the same width, but make the characters in the cells 1 pixel thinner). Finally, the entire lowercase f might need to be shifted one pixel up. I may also suggest adding one pixel to the height of most of the lowercase letters.

If we're talking about custom fonts, here's my own font I've developed over the past couple of years. This particular version is a 2 bit, 8pt, outlined version of my font, "Fawkes UI." It was manualy anti-aliased. It's supposed to be a proportionally-spaced font where the outline overlaps.
l

Fawkes UI, 8pt, Outlined, 2 bit.


I originally designed it to caption a little GIF movie I was going to make (hence the useless musical note). It was created pixel-by-pixel in an editor called Usenti (which includes a very useful Export function that includes a C array or a GAS syntax ASM array which can be converted to NASM syntax with a couple of Finds/Replaces, as well as complete control of the palette). I have no idea how many people here know about it.
